Ruggedised CAT5E UTP Network Cable (100 Meter Reel)
The CAT5E-100M ruggedised CAT5E cable provides a bidirectional digital audio network data link and features Neutrik etherCON NE8MC-1 connector carriers with an integral O-ring gasket to achieve IP54 water protection for high reliability, especially desirable in concert touring and festival applications. When used with Midas PRO and M Series and Klark Teknik products equipped with HyperMAC and copper snake interfaces, the CAT5E-100M cable can transmit up to 192 bidirectional channels of 24 bit digital audio at 96 kHz sample rate. CAT5E-100M also supports 24 bidirectional channels and 48 bidirectional channels at 96 kHz and 48 kHz sample rates respectively for AES50 connections. CAT5E-100M can also be used for standard Ethernet applications, and is suitable for both 100 Mbit/s and Gigabit networks.
The CAT5E-100M cable uses highly durable upjacketed Belden 1305A unscreened cable with a nominal 7.6 mm diameter. The 1305A cable features 24 AWG bonded-pair stranded (7/32) copper conductors with polyolefin insulation and both inner and outer PVC protective jackets.

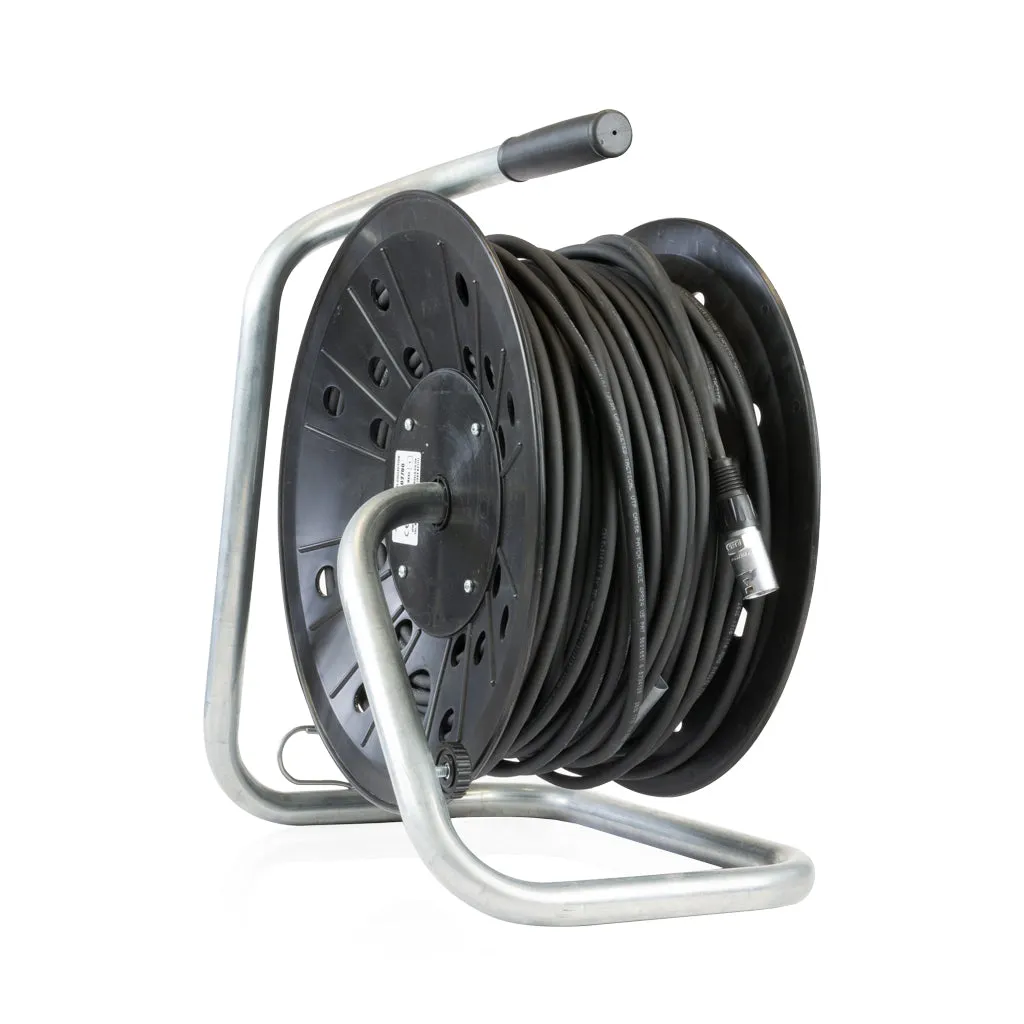

The CAT5E-100M cable is supplied on a reel with heavy duty steel frame and integral carrying handle for ease of transport, deployment and respooling.
Features
- Ruggedised Cat5e UTP network cable with Neutrik etherCON* connectors
- Length 100 metres
- Supplied on reel with heavy duty steel frame and integral carrying handle
- Designed and engineered in the U.K.
